Customisable LED Lengths – Cuttable LED Strips at ADMLED
Cuttable LED strips are now available from ADMLED!

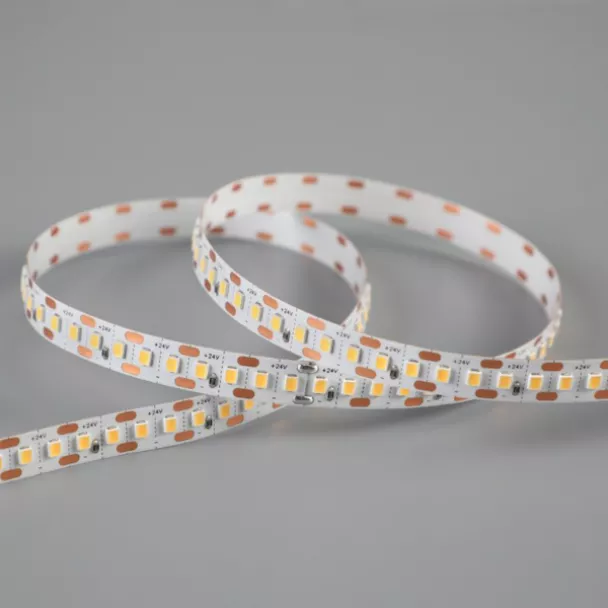

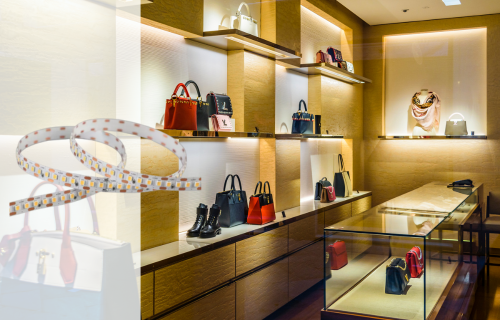

Our range of cuttable LEDs is highly efficient SMD2835 LEDs, perfect for decorative, accent or backlighting installations. These LED strips are ideal for a range of applications, including indirect lighting installations, such as shelves, cabinets, paths, and archways, as well as larger installations, such as billboards and signage.
Our range consists of standard 24VDC powered strips, each producing 19.2W/m, with a range colour profile of 3000 K, producing a minimum of 2,419 lumens per metre with a CRI ≥ 90 rating. This range can also support dimming capability provided by the correct driver and dimming method, such as 0/1-10V, Triac, DALI and DMX.
The entire range features an incredibly short 12.5mm cutting intervals, giving installers true freedom to fit whatever shape is required, with minimal wasted LED strips.
| Model
|
Colour Temp |
Style | Voltage | Power | Brightness | CRI | Increment | IP Rating |
|---|---|---|---|---|---|---|---|---|
|
LS-FRC-24V-5M-10MM-30K |
3000K |
160 LED/m |
24Vdc |
19.2 W/M |
2,688 lm/m |
≥90 |
12.5 mm |
IP 20 |
|
LS-FRC-24V-5M-10mm-30-IP54 |
3000K |
160 LED/m |
24Vdc |
19.2 W/M |
2,419 lm/m |
≥90 |
12.5 mm |
IP 54 |
|
LS-FRC-24V-5M-10mm-30-IP65 |
3000K |
160 LED/m |
24Vdc |
19.2 W/M |
2,553 lm/m |
≥90 |
12.5 mm |
IP 65 |
|
LS-FRC-24V-5M-10mm-30-IP67 |
3000K |
160 LED/m |
24Vdc |
19.2 W/M |
2,419 lm/m |
≥90 |
12.5 mm |
IP 67 |
|
LS-FRC-24V-5M-10mm-30-IP68 |
3000K |
160 LED/m |
24Vdc |
19.2 W/M |
2,419 lm/m |
≥90 |
12.5 mm |
IP 68 |
The cuttable LED strips feature IP ratings ranging from IP20 to IP68, allowing them to be installed in both indoor and outdoor applications.
Our range of cuttable LED strips are readily available in 5m reels and is in stock now in Australia. Users requiring longer reels for upcoming projects, 20m reels of cuttable LED strips are available by special order.
To support installers with quick installations, ADMLED also stock a range of non-solder two-pin quick connectors. These quick connectors come in 5mm, 8mm and 10mm widths, ensuring any onsite cutting can be connected and installed quickly.
If you have any questions about our cuttable LED strip range, the ADM team is here to help! Please send any questions to our contact page here or call the team directly on 1300 236 467.
