The Philips Fortimo LED Squares available from ADM Systems

ADM Systems is happy to now offer the Philips Fortimo LED Square systems in our LED module range. The Fortimo LED Squares are the ideal solution for backlit applications, including box lighting, signage, and recessed office lighting panels.


The Philips Fortimo LED Squares are a more cost-effective alternative to sidelight LED systems, providing a perfect homogeneous lighting output while promoting high thermal efficiency and avoiding the ‘hot spotting’ issue that commonly affects backlit panel lighting.

Learn more about Philips Signify here.

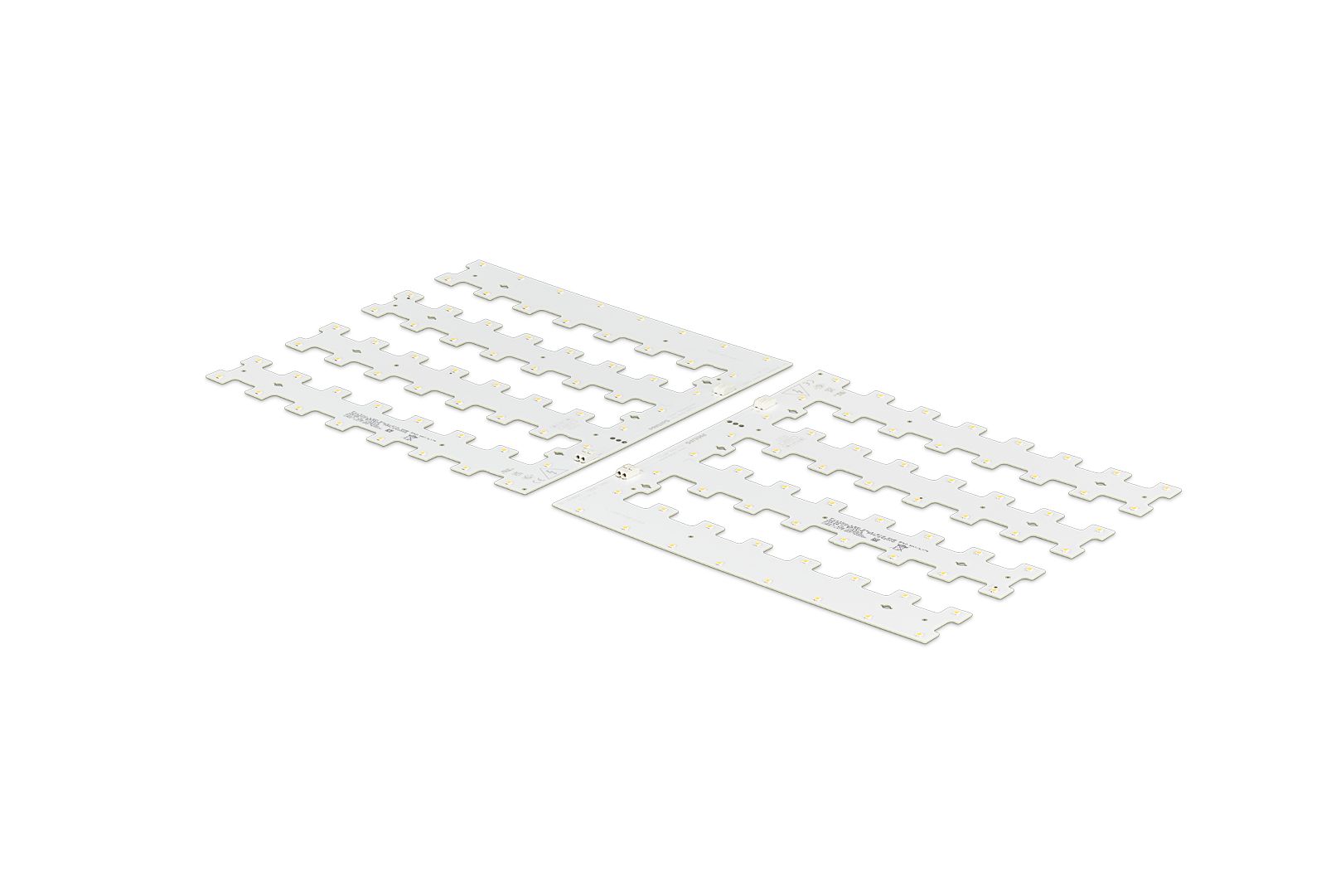

The LED Squares are available in two dimensions, catering to both square (260 x 250 mm) and rectangular (260 x 520 mm) installations. The series features a CRI>90, with a wide colour temperature range from warm white (2700°K) to pure white (6500°K). The series also features a wide lumen output range, from 1260lm to 2500lm, making it perfect for office and retail settings.

The Philips LED Squares are designed for a lifetime exceeding 50,000 operating hours and can operate efficiently within a temperature range of -40°C to +80°C.

The Philips Fortimo LED squares are compatible with Philips Xitanium linear LED Drivers, which support both non-dimmable and dimmable LED drivers, offering 1-10V and DALI DT6 options.

If you are looking for high-quality LED square lighting solutions for an upcoming design or to increase the cost-effectiveness of a current design in production, the Philips Fortimo LED Square is the perfect solution.

If you’d like to learn more, the ADM Systems team is here to help with any questions you have. Please send questions to our contact page here or call the team directly on 1300 236 467.
