4 Channel DIN Rail Mount DALI-2 to AC TRIAC Dimming Converter

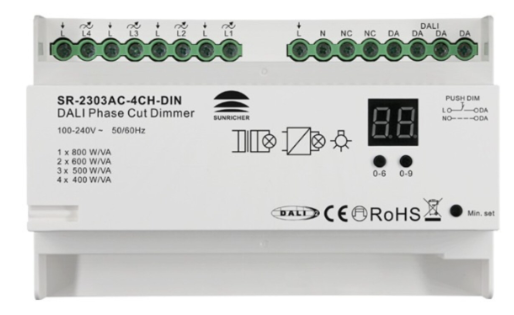

The Sunricher SR-2303AC-4CH-DIN is a DIN rail mountable 4 channel DALI-2 to AC dimming (TRIAC) converter.

 It takes the output from a DALI-2 controller and “chops” the AC output to control AC dimmable or TRIAC dimmable lighting gear.

There are four 100~240VAC output channels, each rated at 1.8A. Each channel can be controlled separately or synchronously.

The SR-2303AC-4CH-DIN takes a 100~240VAC input.

This device is ideal for single-colour LED, incandescent, and halogen lights, and is easy to set up using the buttons and display on the front of the device.

You can set a minimum brightness level from which the dimmer brings up the light level to 100%.

Please do not hesitate to contact our friendly team if you would like further information.
