NFC Programmable 2-Key Push to DALI-2 Converter

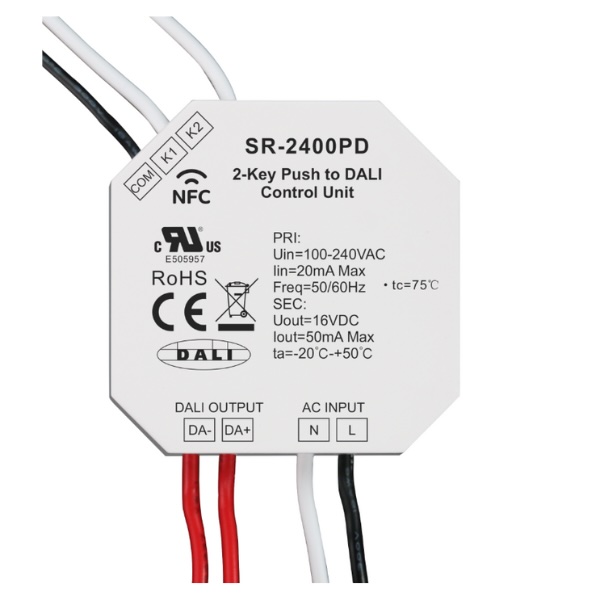

ADM has expanded our capabilities in DALI lighting control by introducing the Sunricher SR-2400PD NFC programmable 2-key push to DALI-2 converter.

 This device has two input options: a 2-channel push switch, or a dry contact motion sensor. The sensor takes these inputs and converts them into a DALI-2 signal to control lighting gear.

There are two modes of dimming operation:

• Push Dim – for manual dimming via a standard momentary push (non-latching) push switch.

• Corridor DIM – for automated control via motion sensors.

Both modes are NFC programmable for flexible configuration.

There are also two power modes. In active mode, the SR-2400PD accepts a 100~240VAC input. There is a built-in 50mA DALI bus power supply, which can power up to 25 DALY DT6 / DT8 devices. In passive mode the device can be powered via a DALI bus. Up to 100 DALI devices can be managed while 4 units are connected to the mains.

The SR-2400PD is compatible with DT6, DT8 Tc, DT8 XY, and DT8 RGBWAF DALI type devices. It supports broadcast, single address, and group operation.

In Push Dim mode this device accepts short press, long press, and double click actions.

All DALI commands are configurable via NFC.

Please do not hesitate to contact our friendly team if you would like to learn more about the Sunricher SR-2400PD.
